Zhejiang factory swing barrier (swing gate) company _OEM outdoor turnstiles manufacturers Articles: This article will introduce you in detail Zhejiang factory swing barrier (swing gate) company _OEM outdoor turnstiles manufacturers and hz63ff related information, Yinchuan kindergarten trio (3 arm turnstile), [RS Security Co., Ltd] Manufacturers, Swing Barrier Manufacturers, Swing Barrier Suppliers, Swing Barrier Manufacturers, Taizhou Service Chemical factory access control manufacturers, RS Security Co., Ltd to provide you with high quality manufacturers supply and brand. By browsing this article you can better understand Zhejiang factory swing barrier (swing gate) company _OEM outdoor subway turnstiles manufacturers and their related information.
Basically by the main chassis and the activities of the wing panels, the shape is like an eagle wings spread, hence the name flap turnstile (flap gate); non-authorized staff have blocked (discouraged) function, it is also known as sluice gate; advantage is run Fast, luxurious atmosphere, the disadvantage is narrow passage only pedestrians.
Mainly used for entrance and exit channel management, the usual application sites only allow personnel to pass, or towing luggage staff, and disabled access. Considering the stretching characteristics of the flap turnstile (flap gate). Most of the flap turnstile (flap gate) routes prohibit the use of expressways such as bicycles and motorcycles.
General flap turnstile (flap gate): frame chassis, movement, wing arm, control system, infrared sensors, control equipment and other components.
Zhejiang factory swing barrier (swing gate) company _OEM outdoor turnstiles manufacturers

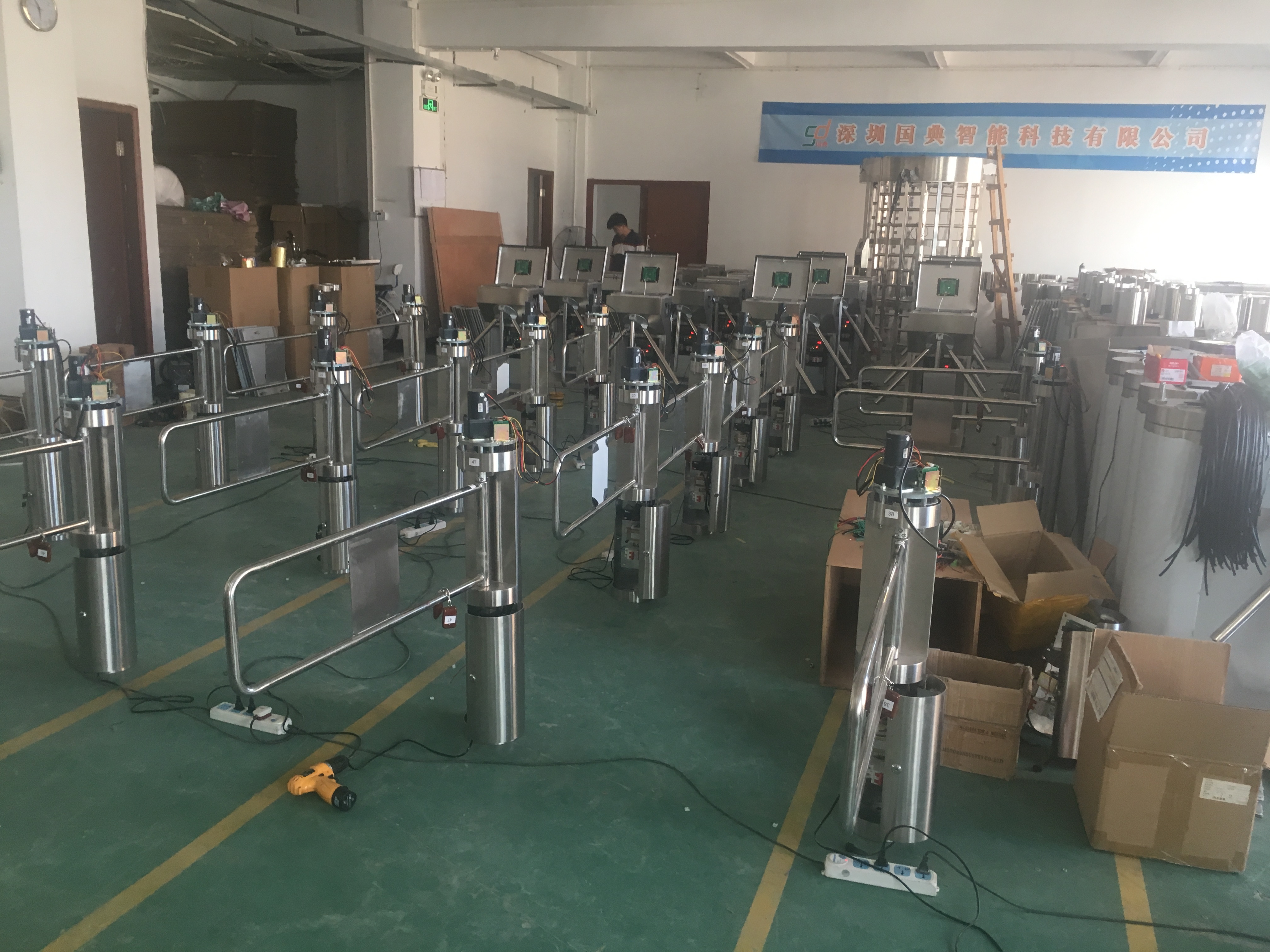

Factory swing barrier
Reverse break into the alarm function, when the positive swipe, someone first break in from the reverse, then the wing quickly closed at the same time alarm;
Flexible access instructions, high-brightness light with its user-friendly tips to make the channel more features;
Normally open, normally closed mode adjustable, easy to dial or external manual button control;
Automatic detection of reset function, after opening the gate, within the specified time (adjustable) is not detected when the object passes, the system will automatically cancel the permission of this pass;
Automatic power off normally open to meet the fire requirements;
Can be connected with a variety of control equipment, receiving relay switch signal work;
The diversification of traffic patterns, one-way or two-way control personnel access, or one-way controlled reverse free passage;
Strong adaptability to the environment, can work in a variety of harsh environments, super self-protection, can be adapted to weak short circuit, light exposure, fog rain, typhoon weather and environmental changes.
Zhejiang factory swing barrier (swing gate) company _OEM outdoor turnstiles manufacturers
Power: AC220 / 50HZ
Working environment temperature: -15 degrees - +70 degrees
Relative humidity: <95% non-condensing
Release time: about 2S
Communication Interface: RS485 optional TCP / IP
Use range
Prisons, high-end buildings, clubs, business entrances and exits, can fully enhance the image, enhance the level of security precautions.
Preventive level
1, normal mode: AA level
2, accurate logic to determine the mode (glass turnstile mode): AAA level
Product definition
The full-height flap turnstile (flap gate) is an upgrade of the ordinary flap turnstile (flap gate), also known as the flap flanking gate (flap gate), the full-height glass turnstile and the flap flapper gate (flap gate). There are no special nomenclatures in the industry, the common name for the full height flap turnstile (flap gate). The full-height flap turnstile (flap gate) is a special mechanical device that controls the access of personnel. It also works with swing barrier (swing gate), flap turnstile (flap gate), trio turnstile (3 arm turnstile) , Cross half height turnstile and other channels together; wide range of applications, high-end style, more stable performance, lower noise, fast speed, can prevent cross-over and other functions, very popular with high-end places of all ages; with precision logic sensors can really do To a person a card a gate.
Full height flap turnstile (flap gate) Reasonable compatibility is more suitable for its function expansion, compatible with access control card system, fingerprint identification system, identification system, video intercom system, card management system, anti-static channel system, and other channel management .
Zhejiang factory swing barrier (swing gate) company _OEM outdoor turnstiles manufacturers
Technical Parameters
1, the power supply voltage: AC220 ± 10% V / 50HZ
2, drive motor: brushless DC motor 200W / 24V
3, motor speed: 3000 r / min
4, the working environment temperature: -15C - 60 degrees
5, relative humidity: relative humidity ≤ 90%, no condensation
6, the input interface: 12V level signal or pulse width> 100ms 12V pulse signal drive current> 10mA
7, communication interface: RS485 electrical standards,
8, communication distance: ≤ 1200 meters
9, traffic width: 520mm (traffic width adjustable, the maximum traffic width of not more than 650mm)
10, the gate speed: 0.4-0.8 seconds adjustable
11, chassis size: length 1400 * width 300 * height 1000 (mm)
